LED Screen

P3.91 Outdoor Rental LED Display

Pixel Pitch: 3.91mm
Pixel configuration: 1R1G1B
Module Resolution: 64*64 pixels
Module Pixles: 4096 pixels
Module Size: 250mm*250mm
Cabinet Resolution(dot): 128*128 pixels
Module Quantity: 4pcs
Cabinet Pixels: 16384 pixels
Pixel Density: 65410 pixel/m2
Cabinet Materials: Die Casting Aluminum
Cabinet Weight: 8.3kg per cabinet
Screen Brightness: 800-1200cd/sqm
Driving Method: 1/16 scan
Best Viewing Distance: 3.91-40m
Max Power Consumption: 1000W/sqm
Average Power Consumption: 550W/sqm
Gray Level: Red, green, blue each 256 levels
Display Color: 280 trillion color
Frame Frequency: ≥60HZ
Power Supply Mode: AC220±10% 50HZ/AC110±10%
Working Temperature:0 Celsius- +40 Celsius
Storage Temperature:-30 Celsius- +50 Celsius
Control Mode: Synchronous dispaly with control PC by DVI
Control System: Linsn, Novastar or as your required

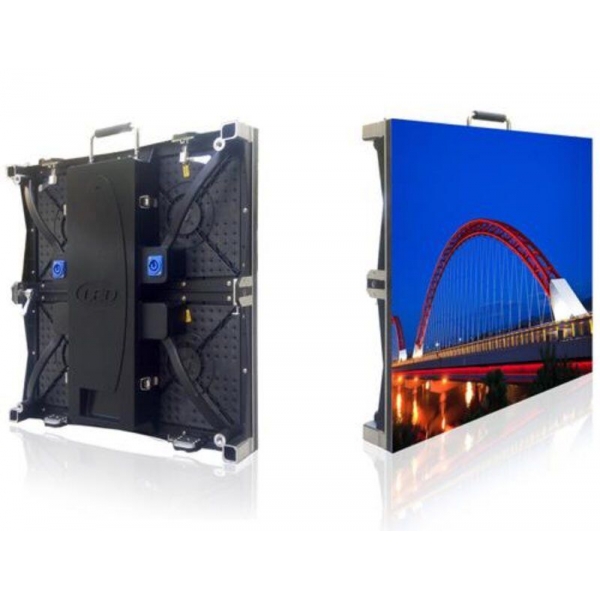

    500*500mm Die Casting Aluminum P3.91 Indoor Rental LED Display
    1. Fast assemble with fast lock and self-help positioning ball.
    3. Die-casting aluminum cabinet, high strength, no deformation.
    4. High precision workmanship, seamless splice<0.1mm.
    5. High definition visual effect as TV, good for any indoor rental application.
    6. No fans no flat cable design, no noise, easy to disassembly.
    7. Snap joint mask design, more easier to insallation, less maintenaince cost.
    8. Adopt high quality SMD2121 LED as light source.
    9. Assure consitent color temperature and brightness.
    10. Pixel pitch available: P2.976/P3.91/4.81/5.95/6.25mm.
    11. Cabinet size option: 500mm*500mm / 500mm*1000mm.
